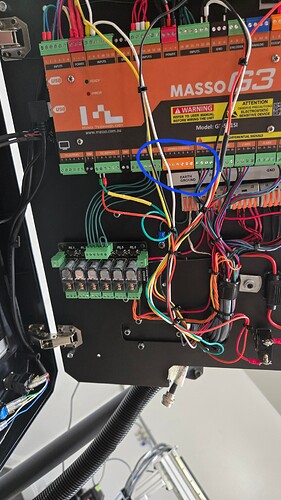

Bought a CNC4newbie machine, the 4x8 model with masso control and closed loop steppers and the full PWN CNC ATC system. I’ve wired my tool setter and the ATC cable to the masso control. I only have the PWM cable coming from the VFD that needs to be wired to the masso control. I believe what I need is a spindle inlet cable to connect the zix pin PWM cable coming from the VFD to the masson control correct? I do not see any other inlets that came with my ATC system to connect it. I went ahead and bought the spindle inlet cable. Does anyone have a photo of how it should be wired up? It should be wired to this ornage terminal correct?
About half way down under additional information.
Having the cable inlet with 18" lead wires would help, but you could make it work otherwise
